Our TTH series is manufactured in accordance with the IEC/EN 61558-2-15 standard,
focused on safety in clinical installations, and guaranteeing patient safety.
Daugiau informacijos:
Technical features – standard model
Power 1 kVA to 10 kVA
Standard voltage Input 400 V and N // Output 230 V and N.
Standard frequency 50-60 Hz

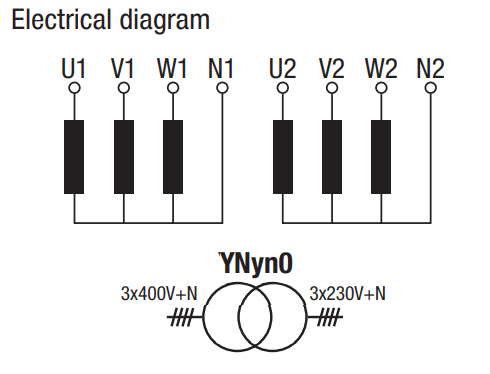

Connection unit YNyn0
Windings Class HC-200 ºC
Insulators Class F – 155 ºC
*More information in Technical Appendix (T.A.1)
Class I
Altitude 1000 m
Enclosure colour RAL 7035
IP rating
IP00 (TTHX)
IP20 (TTH)
IP23 (TTHW)
IK rating IK08 (TTHW)
Paint class (ISO 12944) C3 (TTHW)
Room temperature 45 ºC
Standards IEC/EN 61558-2-15, CE
Test voltage 4.5 kV (1 min., 50 Hz)
Inrush < 12 In
Ucc ≤ 4 %
K factor 4
Operation Continuous
Cooling AN (TTHX / TTH) – ANAN (TTHW)
